CARACTERISTIQUE TECHNIQUE DU RECEPTEUR AMSTRAD SRD 6101-CI (page1)
After we tested the free-to-air version of the Amstrad 4101 in our last
issue it was just a matter of time for the company to implement a Common
Interface. At this moment, interface modules are available for almost any
encryption system. So even real anti-pay-TV users can later switch to to a
certain pay-TV package without having to buy a new receiver, if and when the
need arises.

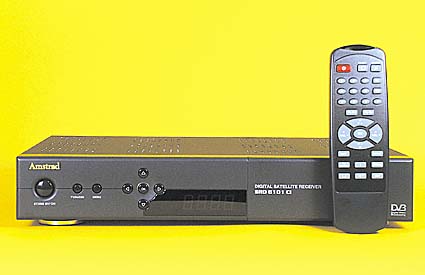

The Amstrad SRD 6101 CI is a nonetheless a fully equipped Free-to-Air
receiver, not some stripped model that subscribers to certain digital pay-TV
packages get. All free channels can be caught with this box without any
limitation. Required parameters are entered manually or found automatically by
this Amstrad box.
| SRD 6101 CI |
| Manufacturer/distributor
Amstrad Distribution GmbH
|
| Information fax
+49-69-9500195
|
| Channel memory
2000
|
| LNB input range
950-2150 MHz (incl. output)
|
| CI
two slots (PCMCIA)
|
| LNB bandwidth
36 MHz
|
| LNB power
13.5 V (vertical), 18V (horizontal), 400 mA
|
| 22 kHz
yes
|
| DiSEqC
yes
|
| 0/12 volt external
yes, 50 mA
|
| Symbol rates
2-31 Msym/s
|
| FEC
1/2, 2/3, 3/4, 5/6, 7/8
|
| PID codes
automatic or manual
|

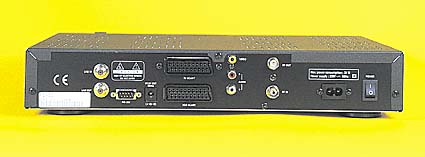

| Scart-connectors
2
|
| RGB-Output
yes
|
| Y/C (S-VHS/Hi-8)
yes
|
| Data interface
RS 232, 9-Pin, 19,2 kB
|
| Software downloads
via Internet
|
